Home > Products > Connectors >
Ships in 6-8 Weeks
OQ0354510000G
Datasheet
1MB
Specifications
| Digi-Key Part Number | 609-3908-ND |
| Manufacturer | Amphenol Anytek |
| Manufacturer Product Number | OQ0354510000G |

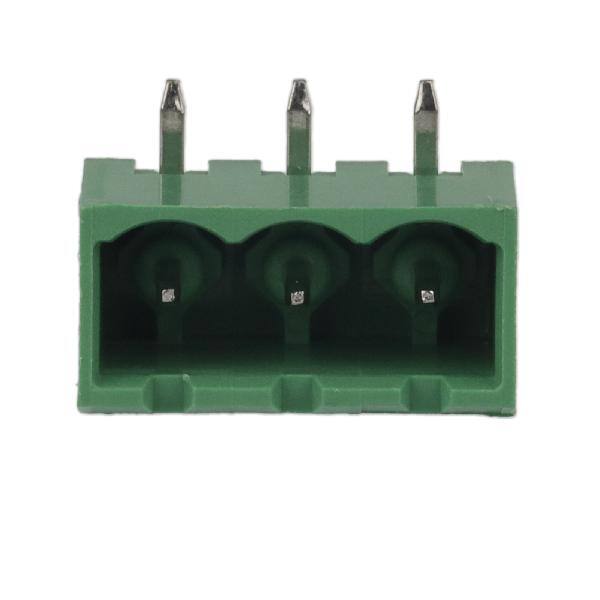

| Description | TERM BLOCK HDR 3POS 90DEG 5.08MM |
| Manufacturer Standard Lead Time | 10 Weeks |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200″ (5.08mm) 90°, Right Angle Through Hole |
| Category | Connectors, Interconnects |
| Terminal Blocks – Headers, Plugs and Sockets | |
| Mfr | Amphenol Anytek |
| Series | 06-508 |
| Package | Bulk |
| Product Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.200″ (5.08mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | – |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current – IEC | – |
| Current – UL | 12:00 AM |
| Voltage – UL | 300 V |
| Wire Gauge or Range – AWG | – |
| Wire Gauge or Range – mm² | – |
| Color | Green |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | – |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | – |
| Screw Size | – |
| Torque – Screw | – |
| Wire Strip Length | – |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic Resin |
| Contact Tail Length | 0.138″ (3.50mm) |
| Insulation Height | 0.335″ (8.51mm) |
| Base Product Number | OQ03 |
